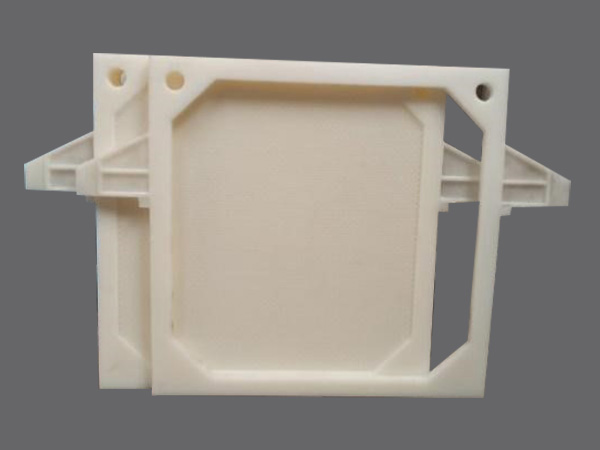

FILTER PLATES

Type of Plates:

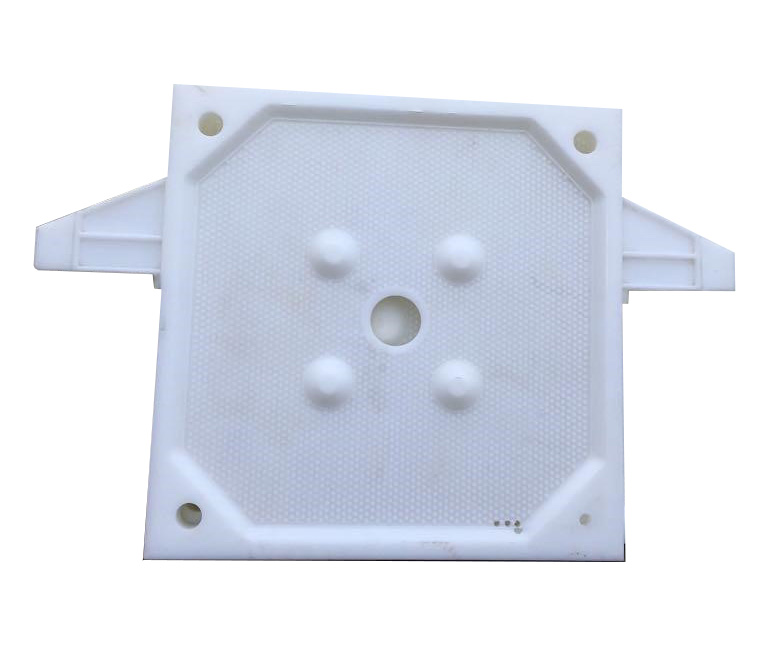

Chemical Plate Operations

  • Open Delivery: In this setup, when the open operation is performed on the chemical plate, there will be 2 corner holes, and the first plate will have 2 corner nozzles
  • Close Delivery: If the Close operation is done in chemical plate then there will be 4 corner holes and the first plate will have 4 corner nozzles in it.
  • Open/Close Delivery: If the Open/Close operation is done in chemical plate then there will be 3 corner holes and the first plate will have 3 corner nozzles in it.
  • Ceramic Operation: If Ceramic Operation is done in the plate then there will be only center hole in the plate.

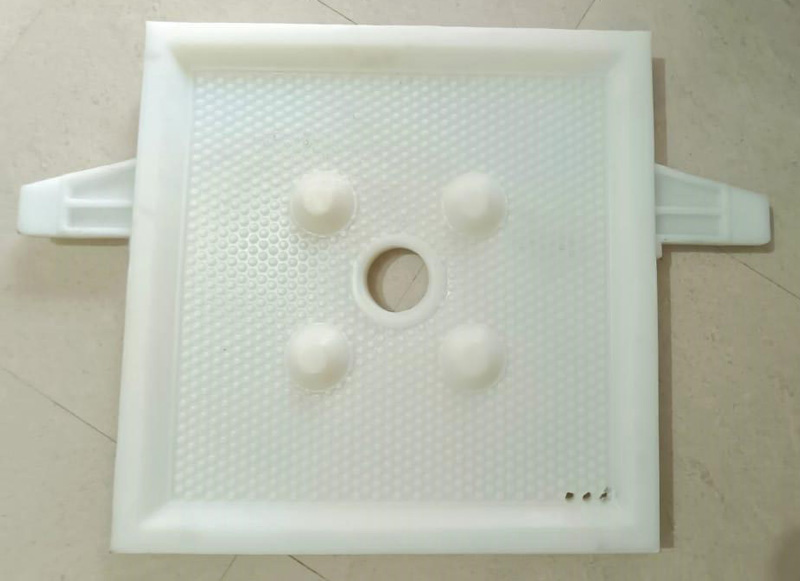

Ceramic Plate Operation

  • Ceramic Operation:
    If Ceramic Operation is done in the plate then there will be only center hole in the plate.
